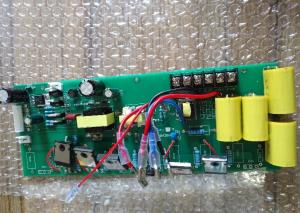

Driving Cleaning Transducers and Sensor Ultrasonic Frequency Generator PCB Circuit Board
Driving Cleaning Transducers and Sensor Generator PCB Circuit Board
Description
The control box adopts advanced techniques, like separately - excited circuits, controlled by microcomputer, automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency.
|
Type
|
X4-A-I
|
X4-A -II
|
X4-A-III
|
X4-A-IV
|
X4-M-V
|
|
Driven power
|
600W-900W
|
900W-1500W
|
1500W-2100W
|
2100W-2700W
|
3000W
|
|
Power Control
(Adjustable)
|
0-100%
|
0-100%
|
0-100%
|
0-100%
|
0-100%
|
|
Working Frequency
|
25KHZ-40KHZ
|
25KHZ-40KHZ
|
25KHZ-40KHZ
|
25KHZ-40KHZ
|
25KHZ-40KHZ
|
|
Working voltage
|
AC220V
10% 50HZ
|
AC220V
10% 50HZ
|
AC220V
10% 50HZ
|
AC220V
10% 50HZ
|
AC220V
10% 50HZ
|
|
Max.numbers of
transducers
|
12-18pcs 60W
|
12-30pcs 60W
|
12-42pcs 60W
|
12-54pcs 60W
|
12-60pcs 60W
|
|
Rated Current
per transducer
|
0.1-0.17A
|
0.1-0.17A
|
0.1-0.17A
|
0.1-0.14A
|
0.1-0.14A
|
|
Output Current
range
|
1-3A
|
1-4.5A
|
1-6A
|
1-7A
|
1-7.5A
|
|
Time Control
Range
|
0-59’59”
|
0-59’59”
|
0-59’59”
|
0-59’59”
|
0-59’59”
|
|
Environment
temperature
|
0-40℃
|
0-40℃
|
0-40℃
|
0-40℃
|
0-40℃
|
|
Relative Humidity
|
40%-90%
|
40%-90%
|
40%-90%
|
40%-90%
|
40%-90%
|
|
Net weight
|
10KG
|
11KG
|
12KG
|
12KG
|
12KG
|
|
Dimension (mm)
|
390×350×130
|
390×350×130
|
390×350×130
|
390×350×130
|
390×350×130
|
Environment temperature:0-40C°
Relative humidity:40%--90%
Working frequency:28KHz(40 KHz,80 KHz,135 KHz) 5%
Range of power control: 0~100% Digital control and adjustment of 16 grades
Internal over temperature protection:65 C°
Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
